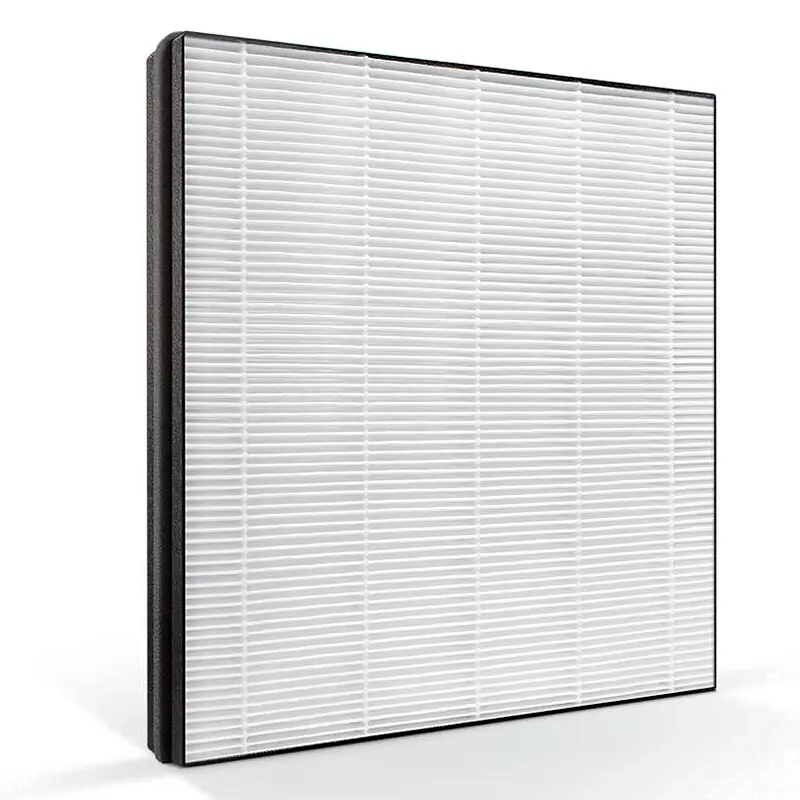

Paper pleating is a critical process in air filter production that transforms flat filter media into the distinctive zigzag configuration essential for efficient filtration. The success of this process—and ultimately the performance of the finished filter—depends heavily on proper adhesive application. Hot melt adhesives play a vital role in securing pleats, maintaining consistent spacing, and ensuring structural integrity throughout the filter’s service life.

This step-by-step guide provides detailed instructions on how to use hot melt adhesive effectively for paper pleating in air filter manufacturing, from material selection to quality verification.

Choosing the correct adhesive is the foundation of successful pleat fixation. Consider these critical factors:

Selection Factor	Why It Matters	What to Look For
Substrate compatibility	Must bond securely to filter paper or nonwoven media	Test adhesion on your specific media type
Viscosity	Affects flow, penetration, and application precision	Match to your application equipment (low for spray, higher for dots/beads)
Open time	Must align with production line speed	Longer open time for slower lines; shorter for high-speed lines
Heat resistance	Filters may encounter warm air during use	Select softening point above expected service temperature
Flexibility	Prevents cracking during handling or air flow	Choose formulation with good flexibility for your pleat geometry
Color	May affect filter appearance	Clear or white typically preferred for aesthetic reasons

Recommended adhesive types for paper pleating:

Adhesive Type	Best For	Key Properties
EVA hot melt	General HVAC filters	Cost-effective, good paper adhesion, fast setting
Polyolefin (PO) hot melt	Automotive/industrial filters	Better heat resistance, good flexibility
Low-temperature hot melt	Heat-sensitive or thin papers	Application at 120–140°C, minimal paper damage

Pro Tip: Request samples from your adhesive supplier and conduct trials with your specific filter paper and production equipment before committing to a full-scale purchase.

The pattern and amount of adhesive directly impact both pleat stability and filter performance. The goal is to use sufficient adhesive to secure pleats without blocking air flow or adding unnecessary weight.

Common Application Patterns

1. Bead Application

• Description: A thin continuous line along the pleat tips
• Best for: Deep pleats, rigid media, applications requiring maximum stability
• Typical bead size: 0.5–2.0 mm diameter
• Placement: Centered on pleat peaks or in the valley between pleats

2. Dot Application

• Description: Small discrete dots at intervals along the pleats
• Best for: Most standard pleating applications; balances holding power with minimal adhesive use
• Typical dot size: 1–3 mm diameter
• Spacing: Every 2–5 cm along pleat length, depending on pleat height and media stiffness

3. Staggered Pattern

• Description: Alternating dots on alternating pleats
• Best for: Preventing adhesive buildup in one location, distributing hold points evenly
• Typical pattern: Dot on pleat #1, skip pleat #2, dot on pleat #3, etc.

4. Intermittent Bead

• Description: Short bead segments with gaps between
• Best for: Balancing continuous hold with reduced adhesive consumption
• Typical length: 5–15 mm beads with 10–30 mm gaps

5. Zigzag or Wavy Pattern

• Description: Oscillating nozzle creates a wavy line
• Best for: Increasing contact area without excessive adhesive volume
• Typical amplitude: 2–5 mm wave height

How to Choose Your Pattern

Media Type	Pleat Height	Recommended Pattern
Lightweight paper (40–80 gsm)	Low (<20 mm)	Small dots, widely spaced
Standard filter paper (80–150 gsm)	Medium (20–50 mm)	Dots or intermittent beads
Heavy paper or nonwoven	High (>50 mm)	Continuous bead or staggered dots

Modern pleating machines can incorporate hot melt application seamlessly. Here’s how the integrated process typically works:

The Complete Pleating Sequence

Stage 1: Media Preparation

• Filter paper unwinds from roll
• Tension controlled to prevent stretching or tearing
• Optional: Pre-heating to improve adhesive wetting (40–60°C)

Stage 2: Pleat Formation

• Blades, reciprocating plates, or rotary drums fold media into pleats
• Pleat height and spacing determined by machine settings
• Media guided to maintain alignment

Stage 3: Adhesive Application (Critical Moment)

• Timing: Adhesive applied at the moment of pleat formation or immediately after
• Positioning: Nozzles align precisely with pleat tips or valleys
• Actuation: Programmable controllers trigger adhesive discharge at exact intervals

Stage 4: Cooling and Setting

• Adhesive solidifies within seconds (typically 3–15 seconds)
• Ambient air cooling sufficient for most applications
• Optional: Forced air cooling for high-speed lines

Stage 5: Accumulation

• Pleated pack stacked or conveyed to next station
• Pleats remain locked and stable for handling

Equipment Requirements

Component	Function	Key Specifications
Hot melt melter	Melts and maintains adhesive temperature	Precise temperature control (±1°C), appropriate melt rate
Heated hose	Transports molten adhesive to applicator	Maintains temperature, flexible for machine movement
Application gun	Dispenses adhesive on demand	Fast response, consistent shot size, drip-free cutoff
Nozzles	Shapes the adhesive output	Mini-orifice for small dots/beads, wear-resistant
Controller	Coordinates timing with pleater	Programmable, integrates with machine PLC

Precise control of process parameters ensures consistent, reliable pleat fixation.

Critical Parameters to Monitor

Adhesive Temperature

• EVA hot melt: 150–180°C (typical)
• Polyolefin: 160–190°C
• Low-temperature grades: 120–140°C
• Verify: Check manufacturer’s technical data sheet for exact range

Temperature Stability

• Target: ±1–2°C at application point
• Consequences of deviation:
  • Too high: Degradation, charring, smoking, bond weakness
  • Too low: Poor flow, inadequate wetting, clogged nozzles

Adhesive Volume

• Dot volume: 2–15 mg per dot (depending on size)
• Bead volume: 0.5–5 g/meter (depending on bead size)
• Control methods: Pressure, nozzle size, on-time duration

Application Timing

• Shot duration: 10–200 milliseconds (typical for dots)
• Frequency: Synchronized with pleat formation rate
• Accuracy: ±1–2 milliseconds for consistent dot size

Nozzle Positioning

• Distance from media: 2–10 mm (typical)
• Angle: Perpendicular to media surface for symmetrical dots/beads
• Alignment: Must hit exact target on pleat tip

Parameter Adjustment Guidelines

Issue	Likely Cause	Adjustments to Try
Dots too large	Excessive volume or low viscosity	Reduce pressure, shorten shot duration, lower temperature
Dots too small	Insufficient volume or high viscosity	Increase pressure, lengthen shot duration, raise temperature
Poor adhesion	Wrong temperature or contaminated media	Adjust temperature, clean media, check adhesive compatibility
Stringing	Adhesive too viscous or too hot	Lower temperature, try low-stringing grade
Missed dots	Timing or alignment off	Verify synchronization, adjust nozzle position
Bleed-through	Too much adhesive or low viscosity	Reduce volume, use higher viscosity adhesive

Quality verification ensures that the pleating and adhesive application process is producing consistent, reliable results.

Visual Inspection Checklist

• All pleats securely locked in position
• No loose or shifting pleats when pack is handled
• Adhesive dots/beads present at all intended locations
• Consistent dot/bead size across the entire pack
• No excessive adhesive bleed-through on visible surfaces
• Clean appearance with minimal stringing or mess

Quantitative Measurements

Pleat Spacing Consistency

• Measure distance between adjacent pleats at multiple points
• Target: Within ±1–2 mm of specification
• Variation indicates uneven pleat formation or adhesive issues

Adhesive Weight

• Weigh filter pack before and after pleating (if possible)
• Track adhesive consumption per filter
• Sudden changes indicate application problems

Pull Test (Destructive)

• Gently separate pleats at adhesive points
• Should feel resistance; paper may tear before adhesive fails
• Weak bonds indicate adhesion problems

Common Defects and Solutions

Defect	Description	Likely Causes	Solutions
Pleat spring-back	Pleats partially unfold after adhesive application	Insufficient adhesive, open time too short	Increase volume, use longer open time grade, pre-heat media
Pleat collapse	Pleats lean or fall over	Adhesive too slow-setting, insufficient hold points	Faster-setting adhesive, more application points
Adhesive skipping	Missing dots/beads at some positions	Nozzle clog, timing error, pressure fluctuation	Clean nozzles, verify timing, check pressure stability
Media tear at bond	Paper tears at adhesive points	Adhesive too aggressive, paper too weak	Use lower adhesion grade, reduce application temperature
Inconsistent spacing	Variable distance between pleats	Media tension issues, pleater mechanical problem	Check media tension, inspect pleater mechanism

Pro Tips for Optimal Results

Tip 1: Match Adhesive to Line Speed

Line Speed	Required Open Time	Recommended Approach
Slow (<5 pleats/min)	30–60 seconds	Standard EVA, longer open time grades
Medium (5–20 pleats/min)	15–30 seconds	Standard EVA, adjust temperature
Fast (20–50 pleats/min)	5–15 seconds	Fast-setting EVA or polyolefin
Very Fast (>50 pleats/min)	<5 seconds	High-speed formulations, possibly in-line cooling

Tip 2: Consider Environmental Factors

• Ambient temperature: Cold shops may accelerate adhesive setting (reduce open time)
• Humidity: High humidity can affect paper properties and adhesion
• Air movement: Drafts can cool adhesive prematurely

Tip 3: Maintain Equipment Regularly

Task	Frequency	Importance
Clean nozzles	Daily	Prevents clogging and inconsistent application
Check temperature sensors	Weekly	Ensures accuracy
Inspect hoses for damage	Monthly	Prevents leaks and temperature loss
Calibrate shot weights	Monthly	Maintains consistent volume
Full system cleaning	Quarterly	Prevents char buildup

Tip 4: Document Everything

Keep records of:

• Adhesive lot numbers
• Temperature settings
• Pressure settings
• Shot timing parameters
• Any adjustments made
• Quality check results

This documentation helps troubleshoot issues and ensures consistency across production runs.

Using hot melt adhesive for paper pleating is a precise but manageable process that directly impacts air filter quality and performance. By following these five steps—selecting the right adhesive, determining the optimal application pattern, integrating with your pleating line, controlling parameters carefully, and verifying results—you can achieve consistent, reliable pleat fixation that stands up to handling and service conditions.

Remember that every filter design and production line is unique. Use this guide as a starting point, but always conduct your own trials and adjustments to optimize for your specific materials, equipment, and requirements.
