TECHNICAL SPECIFICATIONS AND PERFORMANCE ADVANTAGES

High Viscosity Architecture
With viscosity significantly exceeding standard ethylene-vinyl acetate (EVA) and polyamide HMAs, 3052 maintains precise bead control during application. This characteristic prevents dripping or sagging on vertical surfaces – critical for overhead operations in automotive assembly lines. The pseudoplastic flow behavior enables consistent dispensing through automated systems while resisting penetration into porous substrates like non-woven fabrics.

Engineered Open Time
The proprietary polymer design delivers 45-60 seconds of workable open time (at 180°C application temperature), allowing complex component alignment in multi-material assemblies. This extended processing window significantly reduces production waste compared to fast-setting alternatives, particularly valuable in manual operations such as luxury vehicle interior trimming or air filter pleating where precision placement is paramount.

Thermal Performance Benchmark
3052 maintains bond integrity in continuous service temperatures up to 120°C, with peak resistance reaching 150°C – outperforming most commercial polyolefin HMAs. Independent testing confirms tensile strength retention >85% after 500 hours at 110°C. This thermal stability stems from:

• Cross-linked polyolefin backbone resisting polymer chain mobility
• Antioxidant packages mitigating oxidative degradation
• Mineral reinforcement controlling coefficient of thermal expansion

MATERIAL COMPATIBILITY AND BONDING MECHANISMS

The adhesive demonstrates exceptional adhesion diversity through tailored interfacial interactions:

Material Category	Bonding Mechanism	Key Applications
Polypropylene-based non-wovens	Diffusion into fibrous matrix + crystalline surface interaction	Cabin air filters, headliners
Engineering plastics (ABS, PC/ABS)	Molecular entanglement + polar group interaction	Dashboard components, trim panels
Powder-coated metals	Mechanical interlocking + van der Waals forces	Seat frames, bracket assemblies
Thermoplastic olefins (TPO)	Co-crystallization at interface	Door panels, console skins

This multi-substrate capability eliminates the need for primers in most applications, reducing process complexity and VOC emissions. Peel strength tests on automotive substrates consistently exceed 6 N/mm, surpassing OEM specifications for interior component bonding.

CRITICAL APPLICATION SCENARIOS

Automotive Interior Systems
In vehicle cabins, 3052 addresses three critical challenges:

1. Thermal Cycling Resistance: With dashboard temperatures reaching 90°C in direct sunlight, conventional adhesives creep or delaminate. 3052 maintains bond integrity through 5,000+ thermal cycles (-40°C to 110°C).
2. Fogging Resistance: Low-volatile formulation prevents film deposition on windshields (tested per DIN 75201-B).
3. VOC Compliance: Meets VDA 278 and GMW 15634 standards for cabin air quality.

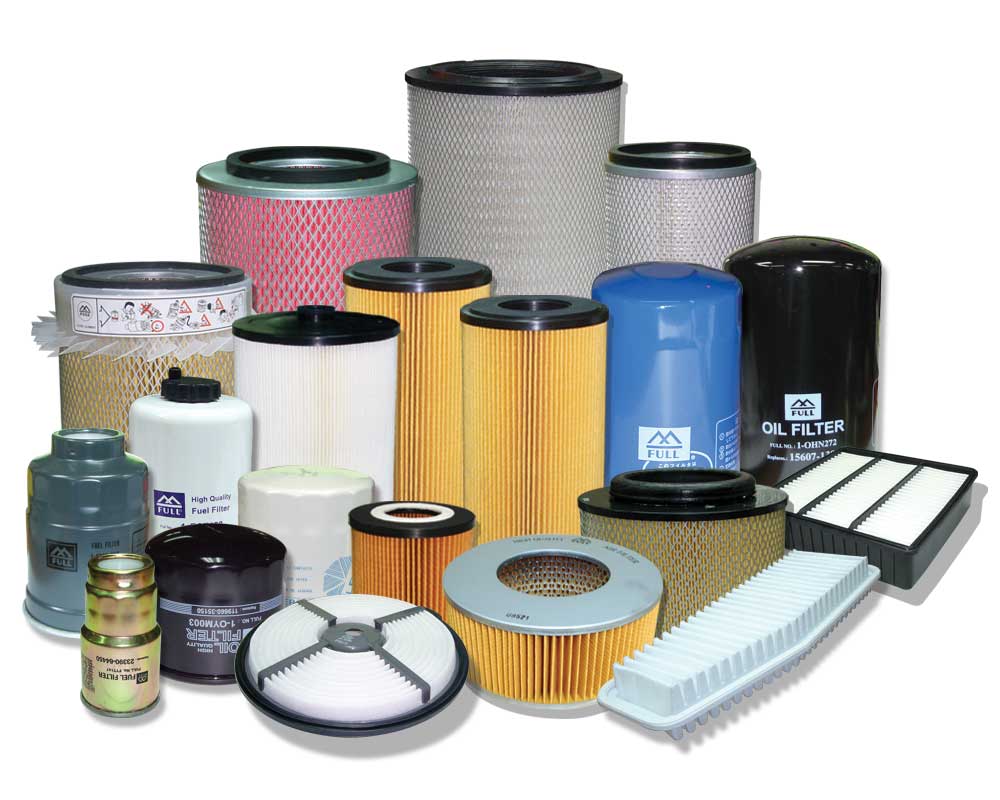

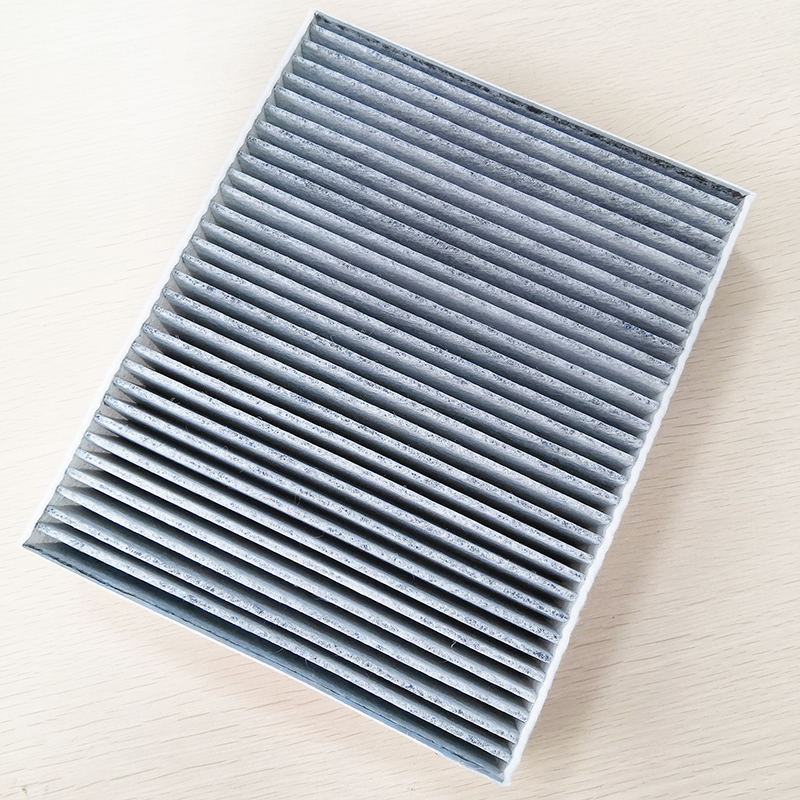

HVAC Filtration Systems
Air conditioning filter elements present unique bonding challenges:

• Must withstand 130°C air bursts during system regeneration
• Resist embrittlement from ozone exposure
• Bond synthetic media to polyurethane end caps without wicking
  3052’s rapid crystallization after open time closure creates hermetic seals on filter pleats while accommodating media expansion/contraction during humidity fluctuations.

Specialty Industrial Assembly
Beyond transportation, 3052 excels in:

• Appliance motor component bonding (vibration damping + thermal transfer resistance)
• Outdoor equipment assembly (UV stability + moisture resistance)
• Electronic housing sealing (dielectric strength >30 kV/mm)

PROCESSING AND SUSTAINABILITY PROFILE

Application parameters are optimized for industrial efficiency:

• Melting Profile: 160-180°C (30°C lower than competitive PPA formulations)
• Re-gel Time: <90 seconds at 20°C ambient
• Recyclability: Compatible with polyolefin recycling streams (tested per APR PRC-003)

The formaldehyde-free, isocyanate-free chemistry aligns with REACH and TSCA compliance requirements while reducing workplace hazards. Life cycle analysis indicates 38% lower carbon footprint versus epoxy alternatives in comparable applications.

COMPETITIVE ADVANTAGE ANALYSIS

3052 outperforms alternative technologies in critical metrics:

Performance Metric	vs. EVA HMAs	vs. Reactive PUR	vs. Silicones
Service Temperature	+45°C	Comparable	-20°C
Open Time	4x longer	2x longer	Comparable
Substrate Versatility	Superior	Comparable	Inferior
Processing Speed	Faster	Slower	Slower
Recyclability	Superior	Inferior	Inferior

FUTURE DEVELOPMENT PATH

Ongoing R&D focuses on:

• Bio-based polyolefin integration (target: 30% renewable content)
• Conductive formulations for EMI shielding applications
• Low-temperature application variants (-10°C substrate bonding)

---

CONCLUSION

POLYOLEFIN HOT MELT ADHESIVE 3052 represents a convergence of material science and industrial necessity. Its engineered balance of viscosity control, processing flexibility, and extreme temperature endurance solves previously intractable bonding challenges in transportation and industrial manufacturing. As thermal management requirements intensify with electric vehicle adoption and high-efficiency HVAC systems, 3052’s performance envelope positions it as an enabling technology for next-generation manufacturing. The adhesive’s compliance with evolving sustainability mandates further ensures its relevance in an increasingly eco-regulated industrial landscape.

Manufacturers seeking to improve production yields, extend product service life, and reduce environmental impact should evaluate 3052 as a strategic upgrade to conventional bonding systems – particularly in applications where thermal failure leads to warranty claims or safety concerns. Technical datasheets with complete comparative testing protocols are available through authorized distributors globally.
